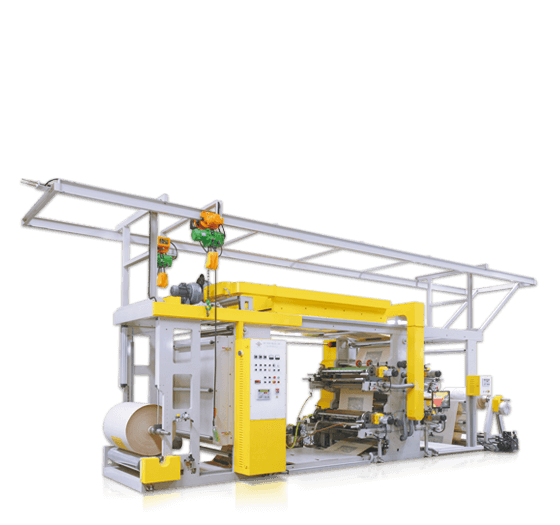

4 Color Stack Type Flexo Printing Machine for Woven Bags and Paper: HY-GP5000 Model

Stack Type Flexo Printing Machines: HY Series

Features

This flexo printing press machine is special for the pp/pe woven sack roll, craft paper printing, and various kinds of heavy-duty packaging materials.


The machine body uses a big iron cast frame with varnish coating, unwinding with auto tension controller and EPC system, roll to roll continue printing bring the most stable and rapid production volume before fabric and paper go into the printing station with the banana roller to spread the film and paper more even, standard equipped with the crane chain type assist the change raw materials and unload the printed materials.


Accessories

  • Hoist with capacities: 0.5 tons x 2 sets.
  • Pneumatic ink circulating pump with tank set: 6 sets.
  • Rewinding with surface type, the winding diameter maximum is 1100 mm.


Specifications

4 Color Flexo Printing

  • Web Width: 800 mm ~ 1800 mm
  • Printing Width: 700 mm ~ 1700 mm
  • Repeat Printing Length: 250 mm ~ 1000 mm
Video
